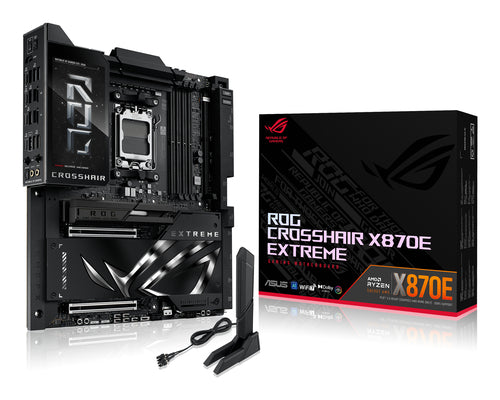

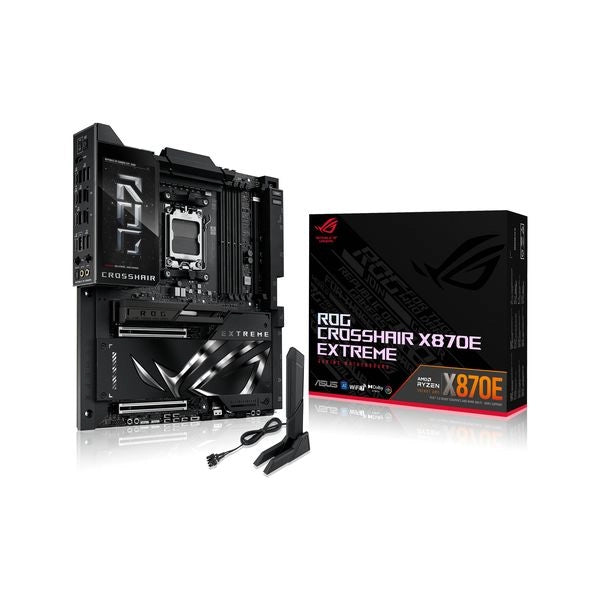

Asus rog crosshair x870e extreme amd x870e socket am5 atx esteso - 90MB1LB0-M0EAY0
Asus rog crosshair x870e extreme amd x870e socket am5 atx esteso - 90MB1LB0-M0EAY0
Prezzo normale
1.435,10 €
Prezzo di vendita
1.435,10 €
Prezzo normale
€
IVA inclusa, spedizione gratuita.
Ultimi pezzi disponibili (4)
Guadagna 1435 punti
per questo prodotto con il programma fedeltà BravoLove. Accedi
- Consegna tra il 5 Agosto e il 7 Agosto
Reso entro 30 giorni
Garanzia 2 anni
Spedizione gratuita
Acquisti 100% protetti con BravoSafe
Venduto e spedito da eWeki
Descrizione
Descrizione
ROG CROSSHAIR X870E EXTREME
Processore
Produttore processore*
AMD
Presa per processore*
Socket AM5
Processori compatibili*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Socket Processori supportati
Socket AM5
Memoria
Tipi di memoria supportati*
DDR5-SDRAM
Numero di slot di memoria*
4
tipo di slot di memoria
DIMM
Canali di memoria
Dual-channel
Compatibilità ECC
ECC & Non-ECC
RAM massima supportata*
256 GB
Senza buffer
Sì
Controller di archiviazione
Tipi di unità di archiviazione supportate
HDD & SSD
Interfacce dell'unità di archiviazione supportate*
M.2, SATA III, SlimSAS
numero di dispositivi di archivio supportati
10
Supporto RAID
Sì
Livelli RAID
0, 1, 5, 10
Grafica
Tecnologia di processo parallela*
Non supportato
Scheda grafica integrata
No
I/O interni
Connettori USB 2.0*
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)*
2
Connettori USB 3.2 Gen 2 (3.1 Gen 2)*
1
Connettori USB 3.2 Gen 2x2
1
Numero di connettori SATA III*
4
Connettore pannello audio frontale
Sì
Connettore del pannello anteriore
Sì
Connettore ATX (24-PIN)
Sì
Connettore ventola CPU
Sì
Numero di connettori ventola chassis
2
Connettore di potenza EPS (8-Pin)
Sì
Connettore con potenza 12V
Sì
Connettore LED RGB
Sì
Pannello posteriore porte I/O
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A*
8
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C*
2
Quantità porte USB4 Gen 3×2
2
Quantità porte Ethernet LAN (RJ-45)*
2
Quantità porte PS/2
1
Quantità porte HDMI*
1
Porta uscita S/PDIF
Sì
Spinotto antenna WiFi-AP
1
Collegamento in rete
Collegamento ethernet LAN
Sì
Tipo di interfaccia Ethernet
5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi*
Sì
Collegamento in rete
Wi-Fi standard
Wi-Fi 7 (802.11be)
Standard Wi-Fi
Wi-Fi 7 (802.11be)
Bluetooth
Sì
Versione Bluetooth
5.4
Caratteristiche
Chipset scheda madre*
AMD X870E
Chip audio
Realtek ALC4082
Sistema audio*
7.1 canali
Colore del prodotto
Nero
Componente per*
PC
Fattore di forma scheda madre*
ATX esteso
Famiglia di chipset per scheda madre*
AMD
Sistema operativo Windows supportato
Windows 11
Slot espansione
Slot PCI Express x16 (Gen 4.x)
2
Slot PCI Express x16 (Gen 5.x)
2
Numero di slot di M.2 (M)
5
Dimensione massima del primo connettore Key M.2
22110
Generazione massima PCI Express del primo M.2
5.0
Dimensione massima del secondo connettore Key M.2
2280
Generazione massima PCI Express del secondo M.2
5.0
Dimensione massima del terzo connettore Key M.2
22110
Generazione massima PCI Express del terzo M.2
5.0
Dimensione massima del quarto connettore Key M.2
22110
Generazione massima PCI Express del quarto M.2
4.0
Dimensione massima della chiave del 5° M.2
22110
Generazione PCI Express più alta del 5° M.2
4.0
BIOS
Tipo BIOS*
UEFI AMI
Dimensione memoria BIOS
512 Mbit
Dati su imballaggio
Larghezza imballo
380 mm
Profondità imballo
320 mm
Altezza imballo
125 mm
Peso dell'imballo
5,66 kg
Dimensioni e peso
Larghezza
305 mm
Profondità
277 mm
Contenuto dell'imballo
Cavi inclusi
SATA
Antenna inclusa
Sì
Drivers inclusi
Sì
Altre caratteristiche
Uscita audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Caratteristiche particolari
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.
** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
altre funzioni
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
9000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Uscita grafica
1 x HDMITM port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.
